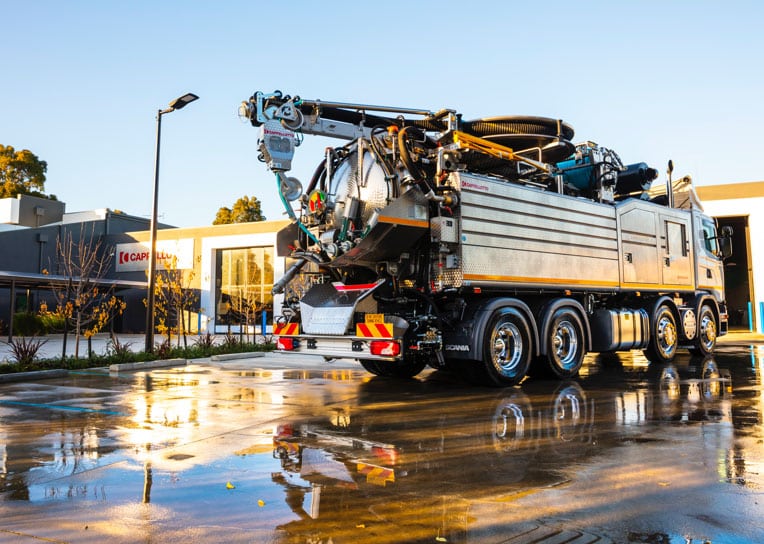

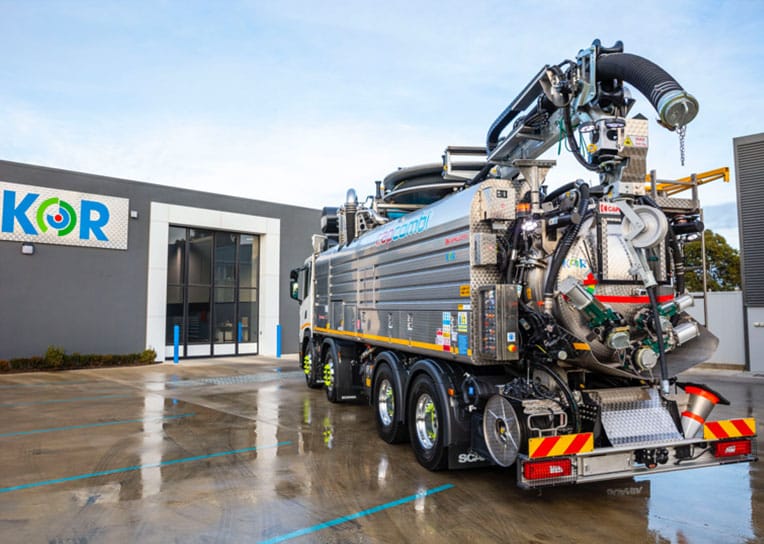

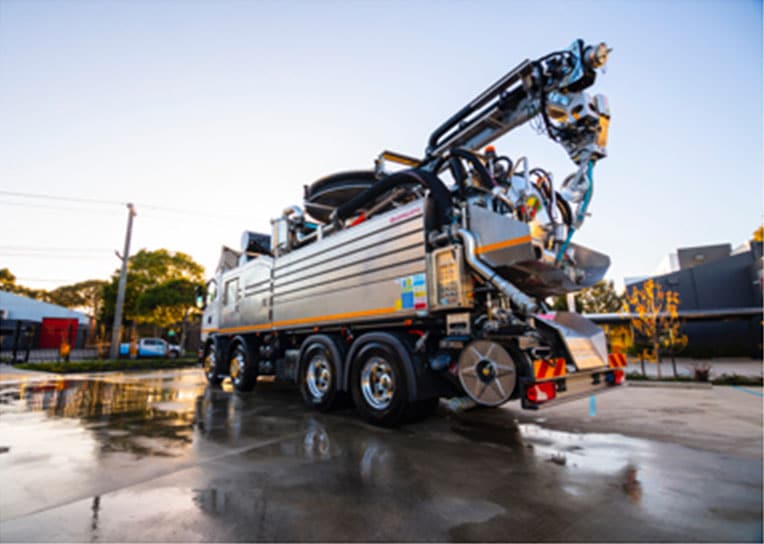

CAP COMBI 2600 CC Hydro
The CAP COMBI 2600 CC Hydro is a unit designed for Australia with a simple and ergonomic design.
With 270 degree boom rotation with 6″ vacuum hose and high payload this unit is ideal for civil construction businesses, utility locaters, boring contractors and those looking to expand their offering in the hydro excavation or non-destructive digging space.
With an 8m³ tank and high payload, the unit is ideal for hydro excavation and work in high density urban environments.
Application
High payload
With simple to use functionality in conjunction with a high quality design, the CAP COMBI 2600 CC Hydro reduces weight and maximises payload with its unique concentric tank design and 8 cubic metre tank on a compact 6×4 chassis. The concentric tank design also enables an evenly distributed weight loading over the chassis and a lower centre of gravity than alternative offers.
6″ Hydro Excavation
With 20m of 3/8″ hose and a full 270 degree rotating vacuum hose, this unit was designed for Australian hydro excavation. With aluminium vacuum tube extensions fitted to the unit as standard, deep pits can be accessed when hydro excavating with this unit.
Utility Locating
As utility locating and the verification of underground asset locations through safe, non-destructive excavation becomes the new normal, the CAP COMBI 2600 CC Hydro is the optimal unit for the task and can be used by utility locaters to locate assets.
Highlighted specs
Variant
CAP COMBI 2600 CC Hydro
Chassis
Volvo FE320 6×4
Power (Hp)
320hp
Emissions
Euro 6
Wheelbase (Euro)
4200mm
Turning Circle (Kerb to kerb)
17100mm
Overall Length
8985mm
Height
3900mm
Sludge Tank
8,000 litres, Stainless Steel 304
Water Tank
4,300 litres, Stainless Steel 304
Vacuum Pump
Hibon 820 XL with 2,822 m3/hr (1,661cfm)
Vacuum Efficiency
Max. vacuum 95% (29″Hg)
Vacuum Filtration
Stainless Steel Cyclone with automatic cleaning function
Boom Design
270 degree rotational design with 4.8m extension
Vacuum Hose
5m of vacuum hose with aluminium vacuum hose extension tubes fitted as standard
Hydro Excavation Pump
UDOR 17 l/min @ 280bar (4,061 psi)
Hydro Excavation Hose Reel
Spring loaded 20m x 3/8″
Body Control
Full Function Wireless Remote Control and Control Panel
Sound Levels
Below 85 dB(A) at 1 metre at rear of unit (general working RPM at 1,000RPM)
